CSR8811 Port for POSIX Systems with HCI H4 bus

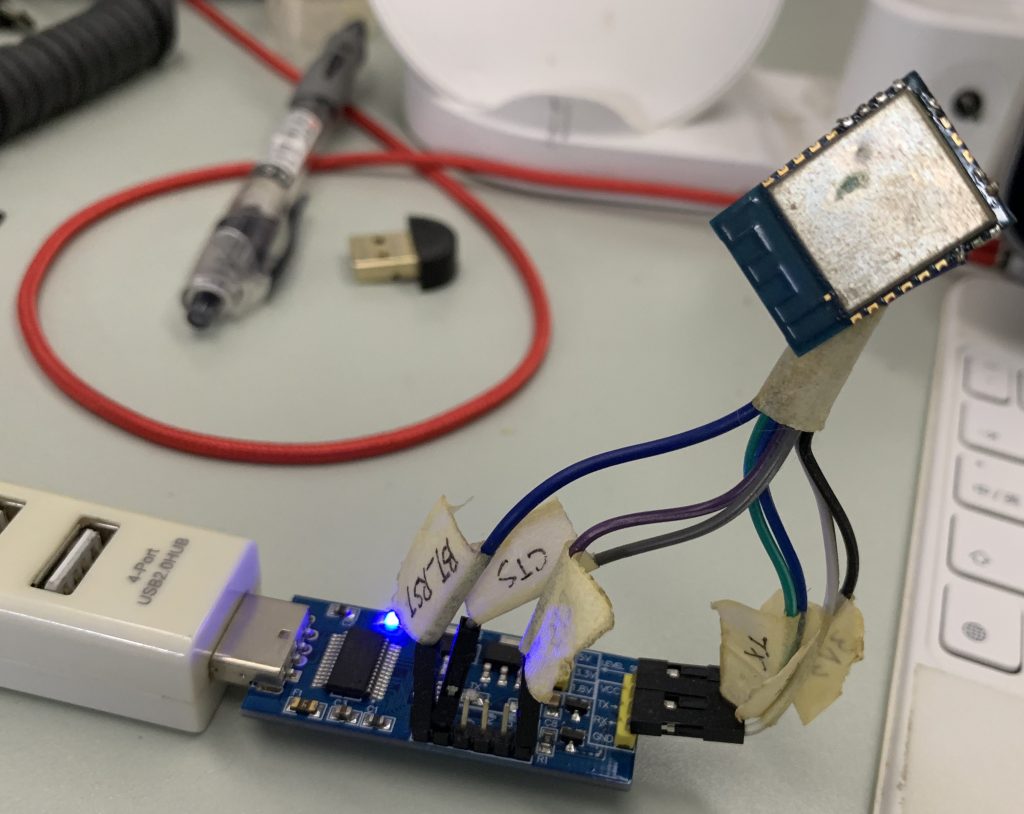

Figure: CSR8811 module over an USB-TTL_UART converter which had a 3.3v power supply

Configuration

Most Bluetooth Bluetooth Controllers connected via UART/H4 require some special configuration, e.g. to set the UART baud rate, and/or require firmware patches during startup. In this port, we’ve tried to do most of these automatically based on information gathered from the Bluetooth Controller.

HW connection:

Connection: Since CSR8811 is a 3.3V device，make sure the power supply for CSR8811 is 3.3V, not 5V. Then my demo connection from CSR module to USB-TTL_UART board is:

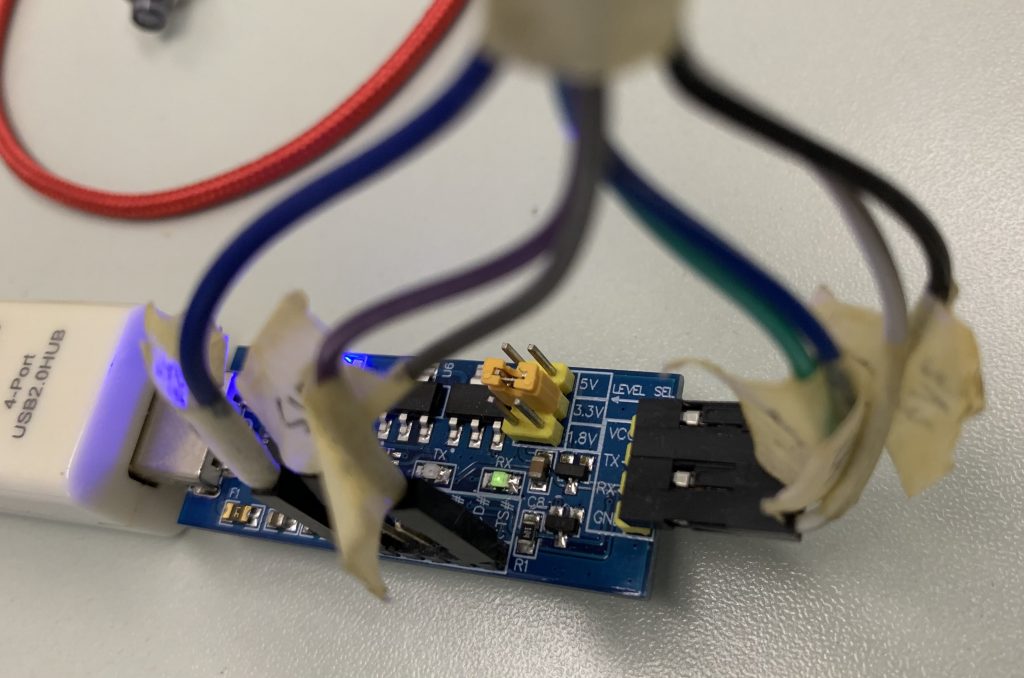

VCC to VCC, with jumper on USB-TTL_UART board set to 3.3v power.
GND to GND
TxD to RxD
RxD to TXD
/CTS to RTS#
/RTS to CTS#
/RST to DSR#

`main.c` fix

Test on macOS/MacbookPro，with USB to TTL UART board，named “/dev/cu.usbserial-A50285BI”.

we should have:

// pick serial port

// my USB-TTL_UART board on macBook
config.device_name = "/dev/cu.usbserial-A50285BI";

I had tested that my CSR module can speedup to 3000000bps on H4 interface, while the default speed is 115200 bps. Then we can change into this hi-speed baud rate for audio application.

On main.c, line 134:

static void use_fast_uart(void){
    printf("Using 3000000 baud.\n"); //cyue add
    config.baudrate_main = 3000000;
  return;

Since my CSR module on-hand had a 3rd. party demo only firmware, with 5 minute shutdown interval after each reset.

`platform/posix/bt_uart_block_posix.c:` line 289 fix

Since I had force the /DSR pin of TTL_UART to reset the CSR module, the CSR module can boot-up correctly.

//cyue: Reset Uart BT chip use DTR pin. We had UART fd opened...
static void  bt_uart_reset(int fd){
    /*--------------------- Controll the DTR pin using ioctl() system call ---------------------*/
  // cyue add: use DTR as reset pin
  int DTR_flag;
  DTR_flag = TIOCM_DTR; // Modem Constant for DTR PIN
  #define clrDTRI() ioctl(fd,TIOCMBIS,&DTR_flag)
  #define setDTRI() ioctl(fd,TIOCMBIC,&DTR_flag)
  clrDTRI(); usleep(25000);
  setDTRI(); usleep(50000);
}

and reset the module when device open（line 300）：

static int bt_uart_posix_open(void){

    const char * device_name = uart_config->device_name;
    const int flowcontrol    = uart_config->flowcontrol;
    const uint32_t baudrate  = uart_config->baudrate;

    struct termios toptions;
    int flags = O_RDWR | O_NOCTTY | O_NONBLOCK;
    int fd = open(device_name, flags);
    if (fd == -1)  {
        log_error("Unable to open port %s", device_name);
        return -1;
    }

  bt_uart_reset(fd);//cyue add reset here...
  bt_uart_reset(fd);//cyue add reset here...
  。
  。
  。

make

make -j

RUN demo application(s)

choose any built application, for example, a2dp_sink_demo：

./a2dp_sink_demo
Packet Log: /tmp/hci_dump.pklg
H4 device: /dev/cu.usbserial-A50285BI
Audio playback supported.
Starting tinyBT2 ...
Local version information:
- HCI Version    0x0007
- HCI Revision   0x2918
- LMP Version    0x0007
- LMP Subversion 0x2918
- Manufacturer 0x000a
Cambridge Silicon Radio - CSR chipset, Build ID: 10520.
Using 3000000 baud.
Local name: CSR - bc7
tinyBT2 up and running at 11:22:33:44:55:66

Meet application failure?

if meet application failure， we should kill the running process before run it again. For the a2dp_sink_demo application:

pkill a2dp_sink_demo

./a2dp_sink_demo

Talking…
